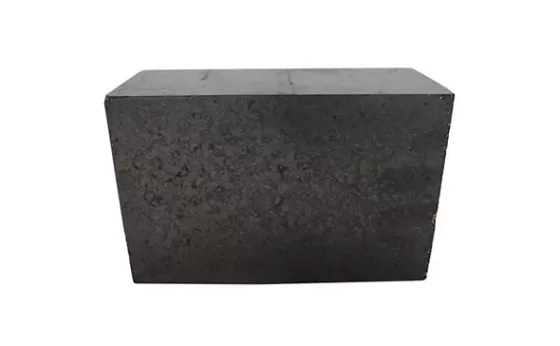

Magnesia carbon brick

Magnesia Carbon Brick is a resin-bonded brick produced from dead-burned or fused magnesia and graphite. Anti-oxidant is also added if needed.Magnesia Carbon Brick has excellent resistance to spalling, rust and excellent oxidation resistance. It can be used in electric furnaces, the second ladle, etc.

Inquire Now Next Product

Product Description

Product Details

Magnesia Carbon Brick is a resin-bonded brick produced from dead-burned or fused magnesia and graphite, with some metallic powder as anti-oxidants to protect the carbon durability. MgO-C bricks are used extensively in high quality steel alloy making processes especially in basic oxygen furnaces, electric arc furnaces, ladle refining furnances,and is widely popular in the steelmaking industry. Magnesia Carbon Brick is mainly used in the converter lining, which is in direct contact with molten steel and molten slag. Mag Carbon Bricks have been used in the ladle refining slag line and has achieved good results. It is also used in the lining part of AC electric arc furnace, DC electric arc furnace, converter and other components.

Magnesia carbon brick

Advantages:

Good high temperature resistance: Bbetter insulation performance than magnesium aluminum carbon brick
Strong anti-slag penetration resistance
Resistance to thermal shock
High Corrosion resistance to slag
Non-Wettability to molten slag
Increases lifespan of the vessal.
Proper residual expansion

Product Parameters

Physical And Chemical Indicators
STEEL LADLE
Brand Properties	Chemical Properties(%)			Physical Properties				Main Application
Brand Properties	MgO	FC	Al2O3	AP(%)	BD(g/cm³)	CCS(MPa)	HMOR(1400℃X0.5hr)	Main Application
LF 8 BI	90	8	2	4	3	45	8	Bottom Impact
LF 8 BN	90	8	2	4	3	45	6	Bottom Non Impact
LF 10 BC	88	10	2	4	3	45	8	Bottom Conical/Splash Pad
LF 12 MP	86	12	2	4	3.05	45	10	Metal Zone Purging
LF 12 MN	86	12	2	5	3.05	40	6	Metal Zone Non Purging
LF 14 SP	84	14	2	3	3.1	40	10	Slag Zone Purging
LF 14 SN	84	14	2	3	3.1	40	8	Slag Zone Non Purging
LF 13 FB	85	13	2	5	3	40	6	Free Board

Msia Refractory is a prominent manufacturer of Magnesia Carbon Bricks in China. we use only the highest quality materials in our production process, ensuring that our bricks are durable and long-lasting. Additionally, we have a highly skilled team of experts who oversee every stage of the manufacturing process, from design to delivery. This allows us to ensure the consistency and quality of our products. Finally, we pride ourselves on providing excellent customer service, with a commitment to timely delivery and responsive support. Contact us now for quality Magnesia Carbon Bricks.
